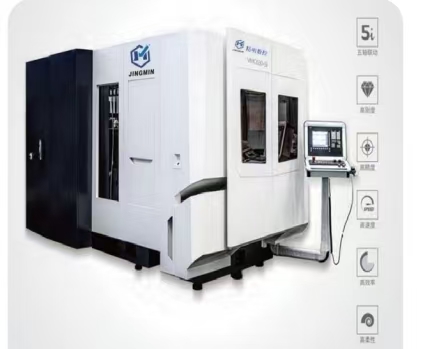

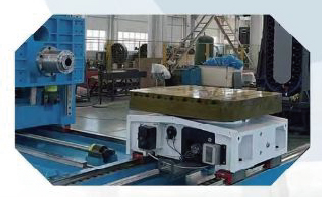

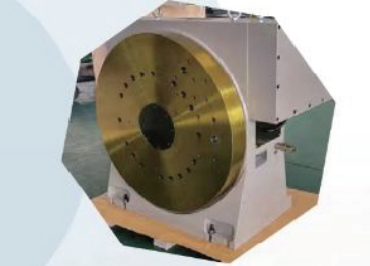

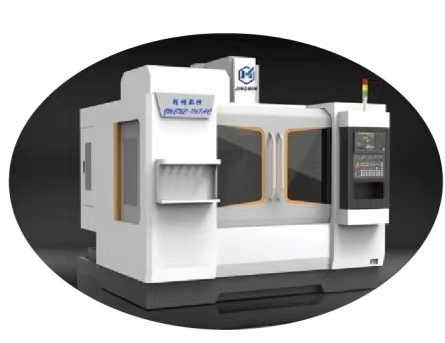

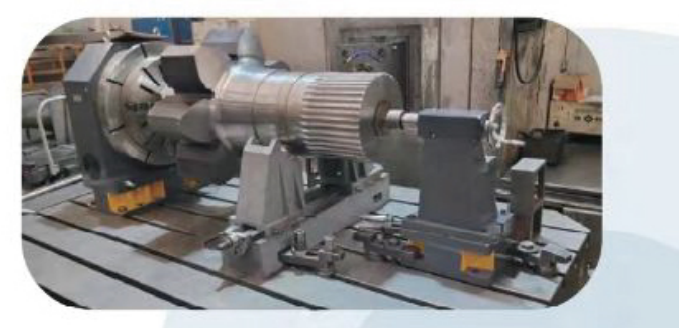

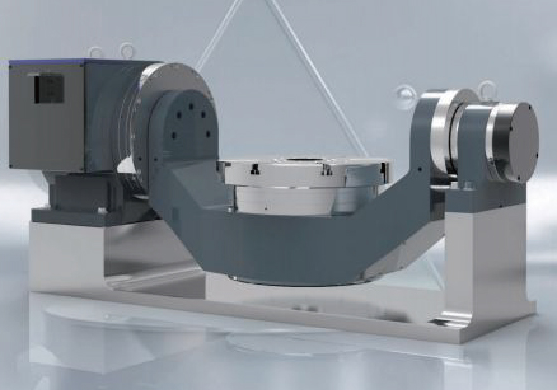

WH630 / WH1000A / WH1412A / WH1612A / WH2515
| Configuration/Model | WH630 | WH1000A | WH1412A | WH1612A | WH2515 |
| Table Size (mm) | 630×630 | 1000×1000 | 1200×1400 | 1200×1600 | 2000×2000 |
| X-Axis Travel | 1600 | 1500 | 2000 | 2000 | 2500 |
| Y-Axis Travel | 770 | 1200 | 800 | 800 | 2000 |
Z-Axis Travel | 900 | 1100 | 800 | 1100 | 1500 |
| Spindle Center to Table Distance | 120-890 | 150-1350 | 190-1000 | 190-1000 | 0-2000 |
| Spindle Nose To Table Center Distance | 130 ~ 1030 | 300 ~ 1300 | -300 ~ 1100 | -500 ~ 1400 | 700~2200 |
| Table T-slots (number - size × spacing) | 5-18×100 | 5-22×200 | 5-22×200 | 5-22×165 | 7-20×100 |
| Spindle Taper | BT50 - φ190 | BT50 - φ190 | BT50 - φ190 | BT50 - φ190 | BT50 - φ190 |
| Spindle Speed | 6000 | 750 Heavy-Cut | 3000 Heavy-Cut | 3000 Heavy-Cut | 3000 Heavy-Cut |
| X, Y, Z-Axis Ball Screw Specifications | 5012 / 5012 / 5012 | 6320 / 6320 / 6320 | 6320 / 6320 / 6320 | 6320 / 6320 / 6320 / 5010 | 8020 / 6320 / 6320 |
| Recommended Main Motor Specifications (kW) | 22 | 30 | 37 | 37 | 450~580 |
X, Y, Z-Axis Guide Rail Specifications ① Standard Linear Guide ② Heavy-Duty Hard Rail Composite Design | 55×2 / 55×2 / 55×2 | 45×2 / 45×4 / 45×2 | 45×2 / 45×4 / 45×2 | 45×2 / 45×4 / 45×2 / 45×2 | 55×3 / 45×4 / 55×2 |
| X, Y, Z-Axis Rapid Traverse Rate | 32、32、32 | 10、10、10 | 10、10、10 | 10、10、10 | 10、10、10 |
| Table Load Capacity (m/min) | 800 | 3000 | 5000 | 5000 | 20000 |
| Machine Net Weight (approx.) (T) | 13 | 26 | 15 | 21 | 38 |
