TK65，TK68

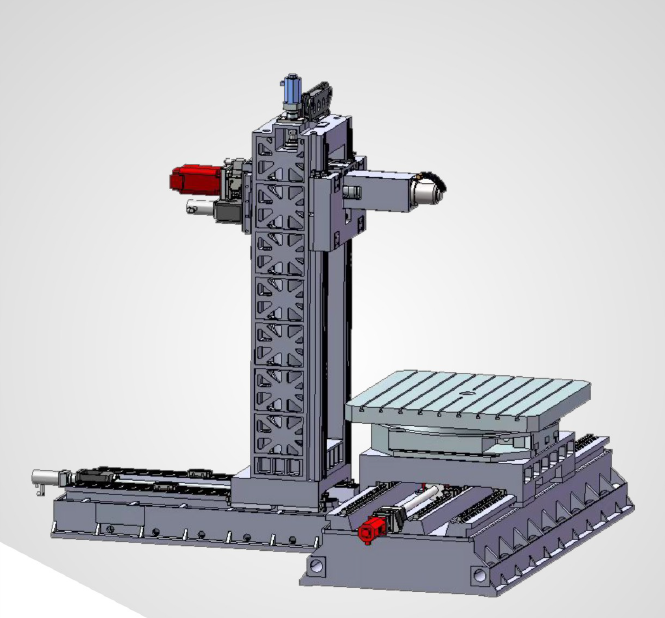

The CNC planer type boring and milling machine are machines with large torque, high efficiency, high rigidity and advanced functions, and the machines, based on the users’ requirements, can convert into machine of different grades and sizes when match with different controllers, different precisions, different sizes of tables. This series of boring and milling machines are suitable for machining large, medium-sized box shape, frame structure or mould parts, and can automatically perform processes such as milling, boring, drilling, reaming, countersinking tapping etc. after single clamping. The machine controls 7 axes with 4 axes linkage to realize circular interpolation and 3-D curved surface machining. The provision of accessories such as milling heads, facing heads, etc. allow the enlarged machining capabilities, while the adoption of cooling case for the spindle enables the control on the spindle temperature rise.
● Axis W+E overlaid extension:1.5 m
● Rotary table size can be:2.5mx3m
● Capable of machining heavier workpieces with bigger cutting force.

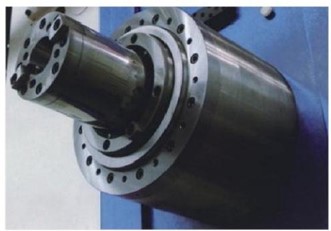

Main Specifications and Parameters for TK65 and TK 68
Item | Unit | TK6511 TH6511 | TK6513 TH6513 | TK6813 TH6813 | TK6516 TH6516 | TK6816 Th6816 | ||
Headstock | Spindle Diameter | mm | Ф110 | Ф130 | Ф130 | Ф160 | Ф160 | |
Spindle Bore Taper | ISO | 50 | 50 | 50 | 50 | 50 | ||
Spindle Speed | r/min | 10-2000 | 2-2000 | 2-1500 | 2-1500 | 2-1000 | ||
Milling Axis Head Diameter | mm | Ф221.44 | Ф221.44 | Ф221.44 | Ф250 | Ф250 | ||

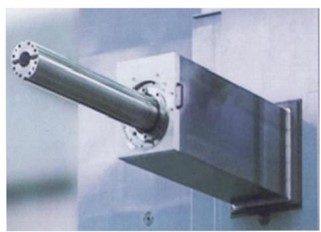

滑枕断面尺寸 Cross Section Size of Ram | mm | 380*420 | 480*520 | |||||
Worktable Size | mm | 1200×1400 1400×1600 | 1400×1600 1600×1800 | 1400×1600 1600×1800 1800×2000 2000×2500 | 1400×1600 1600×1800 1800×2000 | 1400×1600 1600×1800 1800×2000 2000×2500 2500×3000 | ||
Max. Load Capacity of Worktable (Adjustable) | kg | 6000 | 10000 | 10000 | 20000 | 40000 | ||
Distance Between Spindle Center and Worktable | mm | -25 | -25 | -25 | -25 | -25 | ||
Min. Distance from Spindle to Worktable | mm | 0 | 0 | 0 | 0 | 0 | ||
Main Motor Power | kw | 17/22.5 | 22/30 | 30/41 | 30/41 | 37/51 | ||
Machining area | Stroke of Worktable(X-Axis) Adjustable | mm | 2000 | 2000 | 3000 | 2500 | 4000 | |
Vertical Stroke of Head Stock(Y-Axis) Adjustable | mm | 1500 | 2000 | 2000 | 2000 | 2000 | ||
Stroke of Spindle(Z-Axis) | mm | 600 | 800 | 700 | 1000 | 1200 | ||
Stroke of Ram (W-Axis) | mm | / | / | 800 | / | 1200 | ||
Stroke of Column (V-Axis) | mm | 1200 | 1500 | 1600 | 1600 | 2000 | ||
Rotary Angle of Worktable | mm/min | 360 | 360 | 360 | 360 | 360 | ||
Feeding Rate | Stroke Speed of Worktable (X) | mm/min | 5000 | 0.5～6000 | 0.5～6000 | 0.5～6000 | 0.5～6000 | |
Vertical Stroke Speed of Headstock (Y) | mm/min | 5000 | 0.5～6000 | 0.5～6000 | 0.5～6000 | 0.5～6000 | ||
Stroke Speed of Spindle (z) | mm/min | 3000 | 0.5～4500 | 0.5～4500 | 0.5～4500 | 0.5～4500 | ||
Stroke Speed of Ram (W) | mm/min | 0.5~4500 | 0.5~4500 | 0.5～4500 | 0.5~4500 | |||
Tool Magazine (Optional) | Tool Magazine | 把pcs. | 40/60 | 40/60 | 40/60 | 40/60 | 40/60 | |
Max. Weight of Tool | Kg | 40 | 40 | 40 | 40 | 40 | ||
Max. Tool Diameter | Full Occupancy of Tool | Ф125 | Ф125 | Ф125 | Ф125 | Ф125 | ||
Adjacent Tool | Ф250 | Ф250 | Ф250 | Ф250 | Ф250 | |||
Max. Tool Length | mm | 300 | 300 | 300 | 300 | 300 | ||
换刀时间 ATC Time | Sec | 15 | 15 | 15 | 15 | 15 | ||
Control System (Optional) | ||||||||
