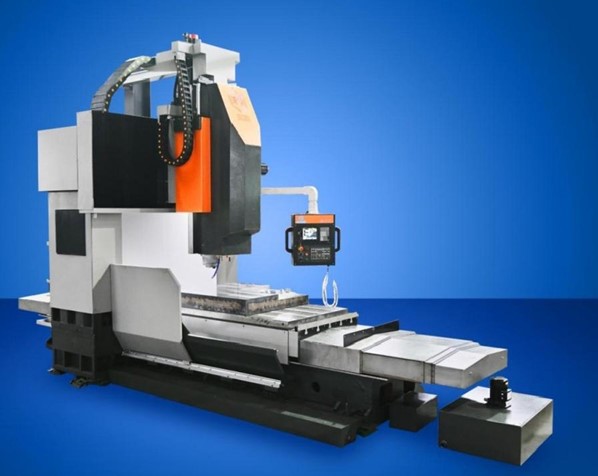

You are here: Home » Products » CNC Machine Tool » MD Series-Gantry Type Machining Center

Series
MODEL	Unit	MDAB2013	MDAB-2016
Worktable Specifications
Worktable Size (X Direction)	MM	2000	2000
Worktable Size (Y Direction)	MM	1000	1200
X-axis Stroke (front and back)	MM	2000	2000
Y-axis Stroke (left and right)	MM	1300	1600
Z-axis Stroke (up and down)	MM	750	800
Distance from Spindle Nose to Worktable Surface	MM	800-900	200-1000
Distance from Spindle Centre to Cross Beam	MM	350	350
Distance Between Columns	MM	1350	1600
Numbers of T Slots	MM	22-6	22-7
Max. Loading Weight on Worktable	T	5	6
Specifications of Spindle and Spindle Box
Spindle Speed	RPM	3000	3000
Spindle Driving Type (standard)		Belt	Belt
Spindle Driving Type (optional)		Direct connection	Direct connection
Spindle Motor Power	KW	18.5	18.5
Taper of spindle inner hole	ISO	BT50/BBT50	BT50/BBT50
Feeding System
G00 Cutting Feed Speed	M\MIN	8\8\8	8\8\8
G00 Rapid Feed Speed (X\Y\Z)	M\MIN	10\10\10	10\10\10
Servo Motor Specification	NM	32\23\27	32\23\27
Servo Motor Speed	RPM	2000	2000
X-axis Motor Connection Mode		Direct connection	Direct connection
Y-axis Motor Connection Mode		Direct connection	Direct connection
Z-axis Motor Connection Mode		Direct connection	Direct connection

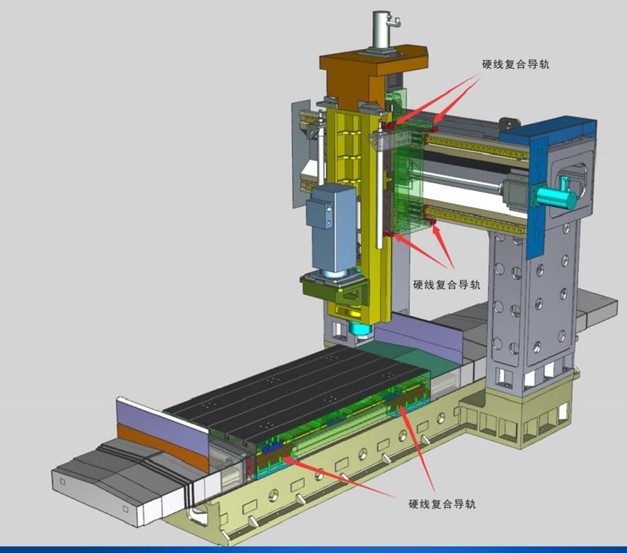

Guideway (AB)		X-axis hard + linear dual-purpose composite	X-axis hard + linear dual-purpose composite
		Y-axis hard + linear dual-purpose composite	Y-axis hard + linear dual-purpose composite
		Z-axis hard + linear dual-purpose composite	Z-axis hard + linear dual-purpose composite
X-axis Linear Guideway Specifications	MM	45 Roller-2*4	45 Roller-2*4
Y-axis Linear Guideway Specifications	MM	45 Roller-2*2	45 Roller-2*2
Z-axis Spindle Box Guideway (A Type)		Hard	Hard
Z-axis Spindle Box Guideway (B Type)	MM	45 Roller-2*3	45 Roller-2*3
Z-axis Spindle Box Square Ram (C Type)	MM	400*400	400*400
Ball Screw X/Y/Z	MM	63/50/50	63/50/50
Axial Positioning Accuracy	MM	±0.01\300	±0.01\300
Repeated Positioning Accuracy	MM	±0.005\300	±0.005\300
Min. Moving Value	MM	0.001	0.001
Tool Shank and Magazine System (noted in order)
Tool Shank	KG	BT50\BBT50	BT50\BBT50
Arbor		MAS403P50T45	MAS403P50T45
Tool Magazine Type	PCS	Arm	Arm
Tool Magazine Capacity	PCS	24	24
Tool Change Time	MIN	4.2	4.2
Tool Magazine Type (optional)		Chain	Chain
Tool Magazine Capacity (optional)		32\60\90	32\60\90
Max. Tool Dia	MM	300	300
Max. Tool Length	MM	500	500
Max. Tool Weight	KGS	20	20
Oil and Gas Pressure System
Lubrication Oil Capacity	L	4	4
Total Power Capacity	KW	40	40
Coolant Liquid Capacity		400	400
Voltage Fluctuation	VAC	380±5%	380±5%
Usable Capacity	KVA	50	50
Phase Number	PHASE	3 phases and 5 lines	3 pahses and 5 lines
Air Pressure Requirement	KG	6.5-8	6.5-8
Sizes
Machine Weight approx.）	T	15	17
Machine Length	MM	5800	5800
Machine Width	MM	4200	4500
Machine Height (maximum)	MM	4200	4200
Machine Height (minimum)	MM	3200~4200	3200~4200
Chip Conveyor Type	/	Double screw/chain	Double screw/chain

Series
MODEL	Unit	MDAB2013	MDAB-2016
Worktable Specifications
Worktable Size (X Direction)	MM	2000	2000
Worktable Size (Y Direction)	MM	1000	1200
X-axis Stroke (front and back)	MM	2000	2000
Y-axis Stroke (left and right)	MM	1300	1600
Z-axis Stroke (up and down)	MM	750	800
Distance from Spindle Nose to Worktable Surface	MM	800-900	200-1000
Distance from Spindle Centre to Cross Beam	MM	350	350
Distance Between Columns	MM	1350	1600
Numbers of T Slots	MM	22-6	22-7
Max. Loading Weight on Worktable	T	5	6
Specifications of Spindle and Spindle Box
Spindle Speed	RPM	3000	3000
Spindle Driving Type (standard)		Belt	Belt
Spindle Driving Type (optional)		Direct connection	Direct connection
Spindle Motor Power	KW	18.5	18.5
Taper of spindle inner hole	ISO	BT50/BBT50	BT50/BBT50
Feeding System
G00 Cutting Feed Speed	M\MIN	8\8\8	8\8\8
G00 Rapid Feed Speed (X\Y\Z)	M\MIN	10\10\10	10\10\10
Servo Motor Specification	NM	32\23\27	32\23\27
Servo Motor Speed	RPM	2000	2000
X-axis Motor Connection Mode		Direct connection	Direct connection
Y-axis Motor Connection Mode		Direct connection	Direct connection
Z-axis Motor Connection Mode		Direct connection	Direct connection
Guideway (AB)		X-axis hard + linear dual-purpose composite	X-axis hard + linear dual-purpose composite
		Y-axis hard + linear dual-purpose composite	Y-axis hard + linear dual-purpose composite
		Z-axis hard + linear dual-purpose composite	Z-axis hard + linear dual-purpose composite
X-axis Linear Guideway Specifications	MM	45 Roller-2*4	45 Roller-2*4
Y-axis Linear Guideway Specifications	MM	45 Roller-2*2	45 Roller-2*2
Z-axis Spindle Box Guideway (A Type)		Hard	Hard
Z-axis Spindle Box Guideway (B Type)	MM	45 Roller-2*3	45 Roller-2*3
Z-axis Spindle Box Square Ram (C Type)	MM	400*400	400*400
Ball Screw X/Y/Z	MM	63/50/50	63/50/50
Axial Positioning Accuracy	MM	±0.01\300	±0.01\300
Repeated Positioning Accuracy	MM	±0.005\300	±0.005\300
Min. Moving Value	MM	0.001	0.001
Tool Shank and Magazine System (noted in order)
Tool Shank	KG	BT50\BBT50	BT50\BBT50
Arbor		MAS403P50T45	MAS403P50T45
Tool Magazine Type	PCS	Arm	Arm
Tool Magazine Capacity	PCS	24	24
Tool Change Time	MIN	4.2	4.2
Tool Magazine Type (optional)		Chain	Chain
Tool Magazine Capacity (optional)		32\60\90	32\60\90
Max. Tool Dia	MM	300	300
Max. Tool Length	MM	500	500
Max. Tool Weight	KGS	20	20
Oil and Gas Pressure System
Lubrication Oil Capacity	L	4	4
Total Power Capacity	KW	40	40
Coolant Liquid Capacity		400	400
Voltage Fluctuation	VAC	380±5%	380±5%
Usable Capacity	KVA	50	50
Phase Number	PHASE	3 phases and 5 lines	3 pahses and 5 lines
Air Pressure Requirement	KG	6.5-8	6.5-8
Sizes
Machine Weight approx.）	T	15	17
Machine Length	MM	5800	5800
Machine Width	MM	4200	4500
Machine Height (maximum)	MM	4200	4200
Machine Height (minimum)	MM	3200~4200	3200~4200
Chip Conveyor Type	/	Double screw/chain	Double screw/chain
