This machine tool is distinguished by its key features:
Robust Engineering: Advanced transmission mechanism for reliable performance.
Streamlined Operation: A simple, user-friendly interface and aesthetically pleasing design.
Versatile Control System: Features a highly intuitive electrical system that includes:
An advanced CNC programmable system for modern manufacturing needs.
A manual operation mode, allowing conversion to a conventional borer and mill.
| Quantity: | |
|---|---|
This machine is suitable for high-precision dimensional machining and cutting operations on various workpieces, including planes, inclined surfaces, curved surfaces, 2D contours, and holes. It is widely used in manufacturing industries such as engines, molds, valves, electric motors, construction machinery, and mining equipment.
The machine enables complete machining in a single setup, including drilling, core drilling, boring, grooving, and milling of planes. It can perform reverse-side boring and multi-face machining on workpieces mounted on the rotary table.
The AS-Type CNC facing head enables U-axis and Z-axis interpolation, allowing for the turning and boring of holes, internal threads, tapers, and spherical surfaces. It is ideally suited for industries such as high-voltage switches, water pumps, and valves.

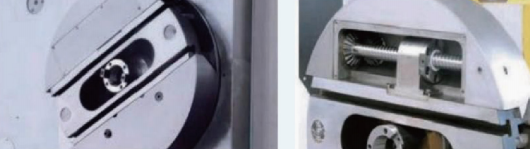

The facing head employs a unique design combining dovetail guides and linear rails, delivering exceptional load-bearing capacity, high rigidity, and easy maintenance. The contact surfaces of the hard rails are hand-scraped, ensuring stable and reliable precision. Driven by a ball screw mechanism with minimal slide block clearance, it offers flexible and reliable operation with high positioning accuracy. The unique finish-boring design for the rear bearing bore ensures consistent accuracy between the boring spindle and the facing head's circular motion.
Precision Spindle Structure
The boring shaft is manufactured from high-quality nitriding steel through a meticulous 37-step process. The resulting nitrided layer exceeds 1 mm in depth with a hardness greater than HV 900. Its surface exhibits compressive residual stress, effectively resisting the "Bauschinger effect" to ensure long-term retention of spindle precision.

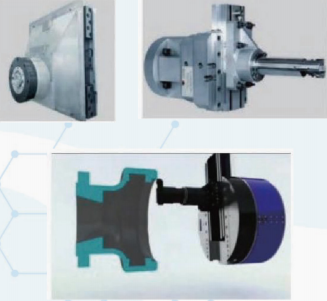

The B-Type product can be equipped with various accessory heads, such as vertical milling heads, universal milling heads, and extension milling heads. This enables the completion of multiple processes in a single setup, offering high efficiency and speed. It significantly expands the machining range of the boring and milling machine while reducing operator workload.
This machine is suitable for high-precision dimensional machining and cutting operations on various workpieces, including planes, inclined surfaces, curved surfaces, 2D contours, and holes. It is widely used in manufacturing industries such as engines, molds, valves, electric motors, construction machinery, and mining equipment.
The machine enables complete machining in a single setup, including drilling, core drilling, boring, grooving, and milling of planes. It can perform reverse-side boring and multi-face machining on workpieces mounted on the rotary table.
The AS-Type CNC facing head enables U-axis and Z-axis interpolation, allowing for the turning and boring of holes, internal threads, tapers, and spherical surfaces. It is ideally suited for industries such as high-voltage switches, water pumps, and valves.
The facing head employs a unique design combining dovetail guides and linear rails, delivering exceptional load-bearing capacity, high rigidity, and easy maintenance. The contact surfaces of the hard rails are hand-scraped, ensuring stable and reliable precision. Driven by a ball screw mechanism with minimal slide block clearance, it offers flexible and reliable operation with high positioning accuracy. The unique finish-boring design for the rear bearing bore ensures consistent accuracy between the boring spindle and the facing head's circular motion.
Precision Spindle Structure
The boring shaft is manufactured from high-quality nitriding steel through a meticulous 37-step process. The resulting nitrided layer exceeds 1 mm in depth with a hardness greater than HV 900. Its surface exhibits compressive residual stress, effectively resisting the "Bauschinger effect" to ensure long-term retention of spindle precision.
The B-Type product can be equipped with various accessory heads, such as vertical milling heads, universal milling heads, and extension milling heads. This enables the completion of multiple processes in a single setup, offering high efficiency and speed. It significantly expands the machining range of the boring and milling machine while reducing operator workload.
