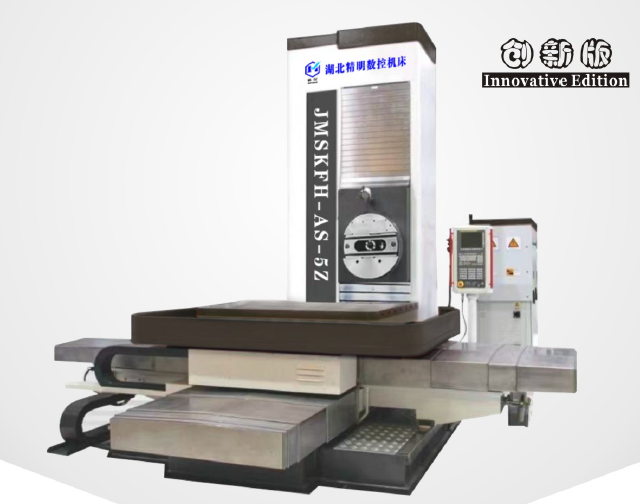

Name: JMSKFHSZCXB CNC Horizontal Boring &Milling Machine
Rating: 5.0 (77 reviews)

juxinde@used-equipments.com +86 13992560725

|

You are here: Home » Products » CNC Machine Tool » JMSKFHSZCXB CNC Horizontal Boring &Milling Machine

ITEMS		UNIT	JMFHA-5Z	JMFHB-4Z	JMFHA-5Z	JMFHB-4Z
Headstock	Dia.	mm	110	110	130	130
	Tapered bore		BT50/P50T-I	BT50/P50T-I	BT50/P50T-I	BT50/P50T-I
	Speed	r/min	10-1500	10-1500	10-1500	10-1500
	Main Motor	kW	15	15	22	22
	Max. Torque	N.m	1029	1029	2100	2100
Facing Head	Dia.	mm	670		800
	Speed	r/min	7-165		5-125
	Max. Torque	N.m	1500		3000
Worktable	Size (W x L)	mm	1250×1400	1250×1400	1400×1600	1400×1600
Worktable	Max. Loading Weight	kg	5000	5000	8000	8000

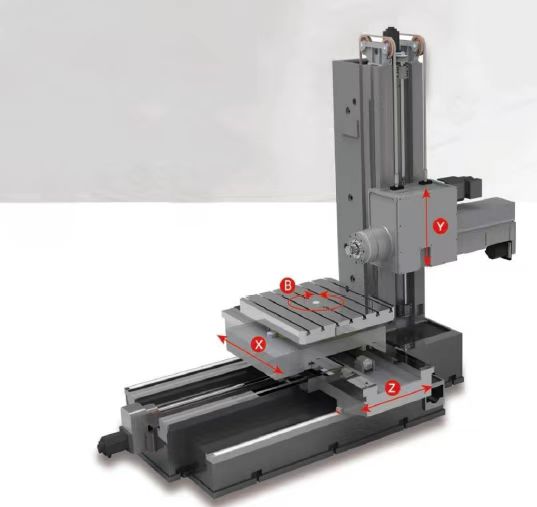

Machine coordinate stroke	Worktable Longitudinal Stroke X	mm	1800	1800	2000	2000
	Spindle Vertical Stroke Y	mm	1600	1600	1600	1600
	Worktable Longitudinal Stroke Z	mm	1400	1400	2000	2000
	Spindle Stroke W	mm	600	500	900	800
	Facing Head Slide Block Stroke U	mm	200		300
Feeding range	X、Y、Z	mm/mir	2.5-2000	2.5-2000	2.5-5000	2.5-5000
	W	mm/min	2.5-2000	2.5-2000	2.5-2000	2.5-2000
	U	mm/min	1-500		1-500
	B	r/min	0.003.	0.003-1	0.003-1	0.003-1
Rapid Moving Speed	X、Y、Z	mm/min	5000	5000	10000	10000
	W	mm/min	3000	3000	3000	3000
	U	mm/min	1000		1000
	B	r/min	2	2	2	2
Coordinate positioning accuracy	X、Y、Z	mn	0.018	0.018	0.02	0.02
	W	mm	0.025	0.025	0.025	0.025
	U	mm	0.025		0.025
	B		8	8	8	8
Repeatable Coordinate Positioning Accuracy	X、Y、Z	mm	0.012	0.012	0.015	0.015
	W	mm	0.020	0.020	0.020	0.020
	U	mm	0.020		0.020
	B		6	6	6	6
Machine Size	Length × width × height (approx.)	mm	6530×4800×4400	6530×4800×4400	7200×5160×4510	7200×5160×4510
Machine Weight	Net/Gross (approx.)	kg	21000	20000	35000	33500

ITEMS		UNIT	JMFHA-5Z	JMFHB-4Z	JMFHA-5Z	JMFHB-4Z
Headstock	Dia.	mm	110	110	130	130
	Tapered bore		BT50/P50T-I	BT50/P50T-I	BT50/P50T-I	BT50/P50T-I
	Speed	r/min	10-1500	10-1500	10-1500	10-1500
	Main Motor	kW	15	15	22	22
	Max. Torque	N.m	1029	1029	2100	2100
Facing Head	Dia.	mm	670		800
	Speed	r/min	7-165		5-125
	Max. Torque	N.m	1500		3000
Worktable	Size (W x L)	mm	1250×1400	1250×1400	1400×1600	1400×1600
Worktable	Max. Loading Weight	kg	5000	5000	8000	8000
Machine coordinate stroke	Worktable Longitudinal Stroke X	mm	1800	1800	2000	2000
	Spindle Vertical Stroke Y	mm	1600	1600	1600	1600
	Worktable Longitudinal Stroke Z	mm	1400	1400	2000	2000
	Spindle Stroke W	mm	600	500	900	800
	Facing Head Slide Block Stroke U	mm	200		300
Feeding range	X、Y、Z	mm/mir	2.5-2000	2.5-2000	2.5-5000	2.5-5000
	W	mm/min	2.5-2000	2.5-2000	2.5-2000	2.5-2000
	U	mm/min	1-500		1-500
	B	r/min	0.003.	0.003-1	0.003-1	0.003-1
Rapid Moving Speed	X、Y、Z	mm/min	5000	5000	10000	10000
	W	mm/min	3000	3000	3000	3000
	U	mm/min	1000		1000
	B	r/min	2	2	2	2
Coordinate positioning accuracy	X、Y、Z	mn	0.018	0.018	0.02	0.02
	W	mm	0.025	0.025	0.025	0.025
	U	mm	0.025		0.025
	B		8	8	8	8
Repeatable Coordinate Positioning Accuracy	X、Y、Z	mm	0.012	0.012	0.015	0.015
	W	mm	0.020	0.020	0.020	0.020
	U	mm	0.020		0.020
	B		6	6	6	6
Machine Size	Length × width × height (approx.)	mm	6530×4800×4400	6530×4800×4400	7200×5160×4510	7200×5160×4510
Machine Weight	Net/Gross (approx.)	kg	21000	20000	35000	33500
