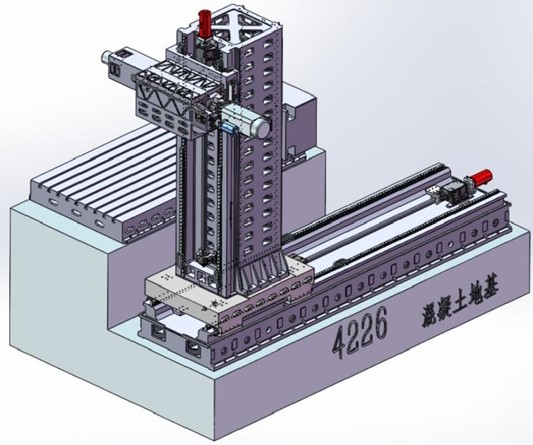

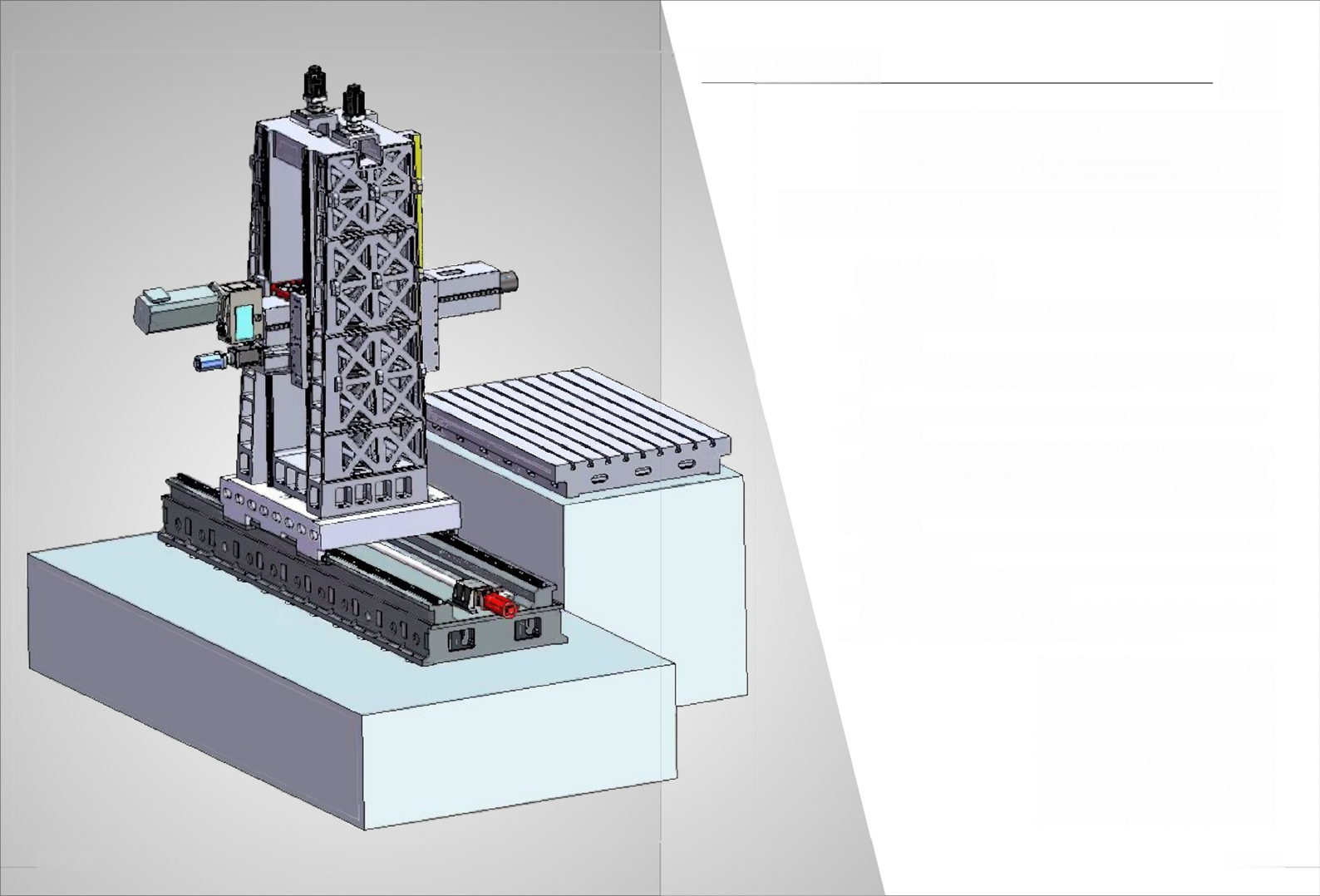

JMLDZZ-69-4030, JMLDZZ-69-3020
JMLDZZ-69-4030 Technical Parameters
ITEM | SEPCIFICATIONS | UNIT | |
Main Sizes | Max. Machining Size (L x W x H) | 4000x3000x3000 | mm |
Machine Overall Sizes (L x W x H) | 9500x5000x4300 | mm | |
Machine Bed Size (L x W x H) | 6500x1500x600 | mm | |
Machine Column Size (L x W x H) | 1455x1770x4815 | mm | |
Min. Distance between Column and Worktable | 300 | mm | |
Worktable Size | 4000x3000 | mm | |
A and B Spindles | SPINDLE PARAMETERS | ||
Horizontal Machining Center Head Ram Outward Rising Range (stroke 1000) Square Ram 400*400 (or T-shaped guideway hard + linear composite) | 800 | mm | |
Taper of Spindle End Taper Bore | 7:24 | BT50 | |
Horizonal Machining Center Spindle Direct Connection with Gear Box 1 to 4 Heavy Gear Box (optional BF gear box) | 标准0-2000,(可选配)特殊设 计1000转以下输出纽矩1200N.m Standard 0-2000, (optional) Special design with the output torque of 1200 N.m under the speed below 1000 rpm | R/min | |
STROKE | |||
Forward and Backward Stroke Along Horizonal Axis of Square Ram of Horizonal Boring Milling Head | 1000 | mm | |
Upward and Downard Stroke of Horizonal Boring Milling Head Center | 3000 | mm | |
Boring Milling Head Column Moving Stroke | 4000 | mm | |
GUIDEWAY TYPE | |||
Horizonal Boring Milling Head (X and Y Axis) X/Y-axis Guideway Type, Upper sliver 55mm roller linear guideway + hard guideway auxiliary support, hard + linear dual-use technology | |||
SCREW SPECIFICATION | |||
Forward and Backward Moving Screw of Horizonal Boring Milling Head | 6310 | Taiwan P5 | |
Upward and Downward Moving Screw of Horizonal Boring Milling Head | 8020 | Taiwan P5 | |
Screws for Movable Boring Milling Head, Column Leftward and Rightward Movement | 10020 | Taiwan P5 | |
SERVO MOTOR | |||
Horizontal Boring Milling Spindle Motor (Beijing Super Synchronous Servo Spindle Motor) | 60 | kW | |
Motor for Forward and Backward Movement of Horizontal Boring Milling Head Along Horizontal Axis (Beijing Kaindi or Japan Mitsubishi Servo Motor) | 3.6 | kW | |
Motor for Upward and Downward Movement of Horizontal Boring Milling Head (Beijing Kaindi or Japan Mitsubishi Servo Motor) | 4.5 | kW | |
Motors for Horizonal Boring Milling Head, Column Movement (Beijing Kaindi or Japan Mitsubishi Servo Motor) | 5.5 | kW | |
MOVING SPEED | |||
Fast Moving Speed of Moving Column | 0-8000 | mm/min | |
PROTECTION COVER | |||
Protection Covers on both Ends of Machine Bed | 2 pcs. | Stainless steel plate | |
Upward and Downward Moving Protection Cover for Horizonal Boring Milling Head | 4 pcs. for each | Armor shield | |
OTHER | |||
Max. Loading Weight on Worktable | 80 | tons | |
Machine Weight (approx.) | 45 | tons | |
Controller | Random linkage of 3 axis out of 4 | Optional for special case | |
Electrical Parts | Full set | ||
Bearings | Whole set | ||
JMLDZZ-69-4030 Technical Parameters
ITEM | SEPCIFICATIONS | UNIT | |
Main Sizes | Max. Machining Size (L x W x H) | 4000x3000x3000 | mm |
Machine Overall Sizes (L x W x H) | 9500x5000x4300 | mm | |
Machine Bed Size (L x W x H) | 6500x1500x600 | mm | |
Machine Column Size (L x W x H) | 1455x1770x4815 | mm | |
Min. Distance between Column and Worktable | 300 | mm | |
Worktable Size | 4000x3000 | mm | |
A and B Spindles | SPINDLE PARAMETERS | ||
Horizontal Machining Center Head Ram Outward Rising Range (stroke 1000) Square Ram 400*400 (or T-shaped guideway hard + linear composite) | 800 | mm | |
Taper of Spindle End Taper Bore | 7:24 | BT50 | |
Horizonal Machining Center Spindle Direct Connection with Gear Box 1 to 4 Heavy Gear Box (optional BF gear box) | 标准0-2000,(可选配)特殊设 计1000转以下输出纽矩1200N.m Standard 0-2000, (optional) Special design with the output torque of 1200 N.m under the speed below 1000 rpm | R/min | |
STROKE | |||
Forward and Backward Stroke Along Horizonal Axis of Square Ram of Horizonal Boring Milling Head | 1000 | mm | |
Upward and Downard Stroke of Horizonal Boring Milling Head Center | 3000 | mm | |
Boring Milling Head Column Moving Stroke | 4000 | mm | |
GUIDEWAY TYPE | |||
Horizonal Boring Milling Head (X and Y Axis) X/Y-axis Guideway Type, Upper sliver 55mm roller linear guideway + hard guideway auxiliary support, hard + linear dual-use technology | |||
SCREW SPECIFICATION | |||
Forward and Backward Moving Screw of Horizonal Boring Milling Head | 6310 | Taiwan P5 | |
Upward and Downward Moving Screw of Horizonal Boring Milling Head | 8020 | Taiwan P5 | |
Screws for Movable Boring Milling Head, Column Leftward and Rightward Movement | 10020 | Taiwan P5 | |
SERVO MOTOR | |||
Horizontal Boring Milling Spindle Motor (Beijing Super Synchronous Servo Spindle Motor) | 60 | kW | |
Motor for Forward and Backward Movement of Horizontal Boring Milling Head Along Horizontal Axis (Beijing Kaindi or Japan Mitsubishi Servo Motor) | 3.6 | kW | |
Motor for Upward and Downward Movement of Horizontal Boring Milling Head (Beijing Kaindi or Japan Mitsubishi Servo Motor) | 4.5 | kW | |
Motors for Horizonal Boring Milling Head, Column Movement (Beijing Kaindi or Japan Mitsubishi Servo Motor) | 5.5 | kW | |
MOVING SPEED | |||
Fast Moving Speed of Moving Column | 0-8000 | mm/min | |
PROTECTION COVER | |||
Protection Covers on both Ends of Machine Bed | 2 pcs. | Stainless steel plate | |
Upward and Downward Moving Protection Cover for Horizonal Boring Milling Head | 4 pcs. for each | Armor shield | |
OTHER | |||
Max. Loading Weight on Worktable | 80 | tons | |
Machine Weight (approx.) | 45 | tons | |
Controller | Random linkage of 3 axis out of 4 | Optional for special case | |
Electrical Parts | Full set | ||
Bearings | Whole set | ||
